Overview

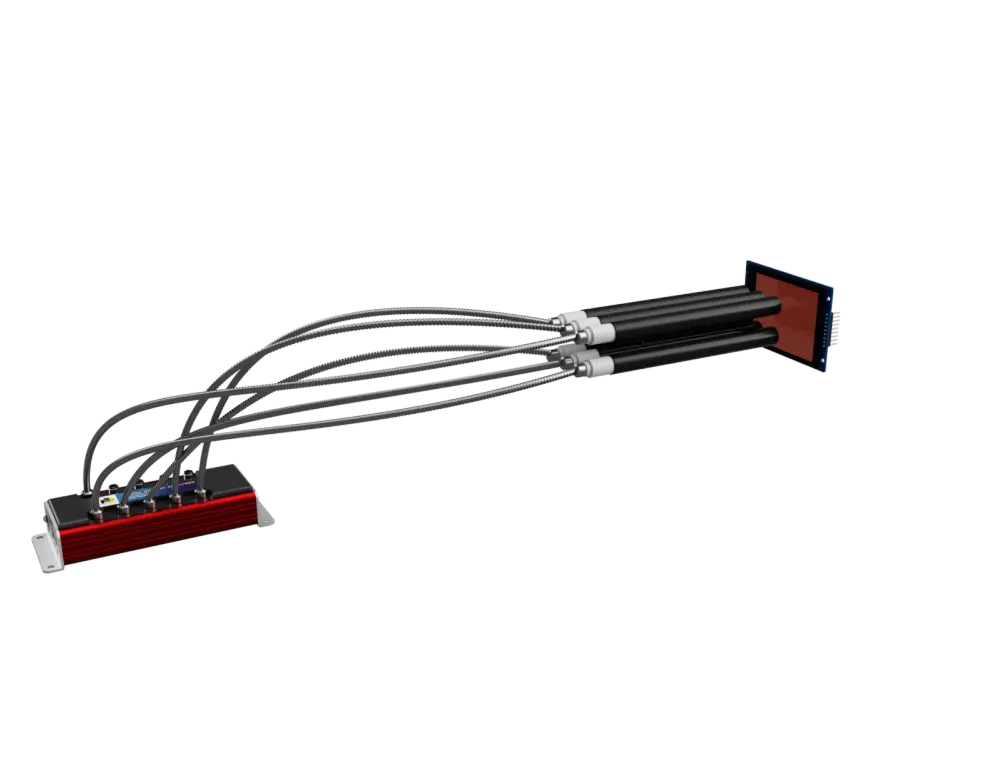

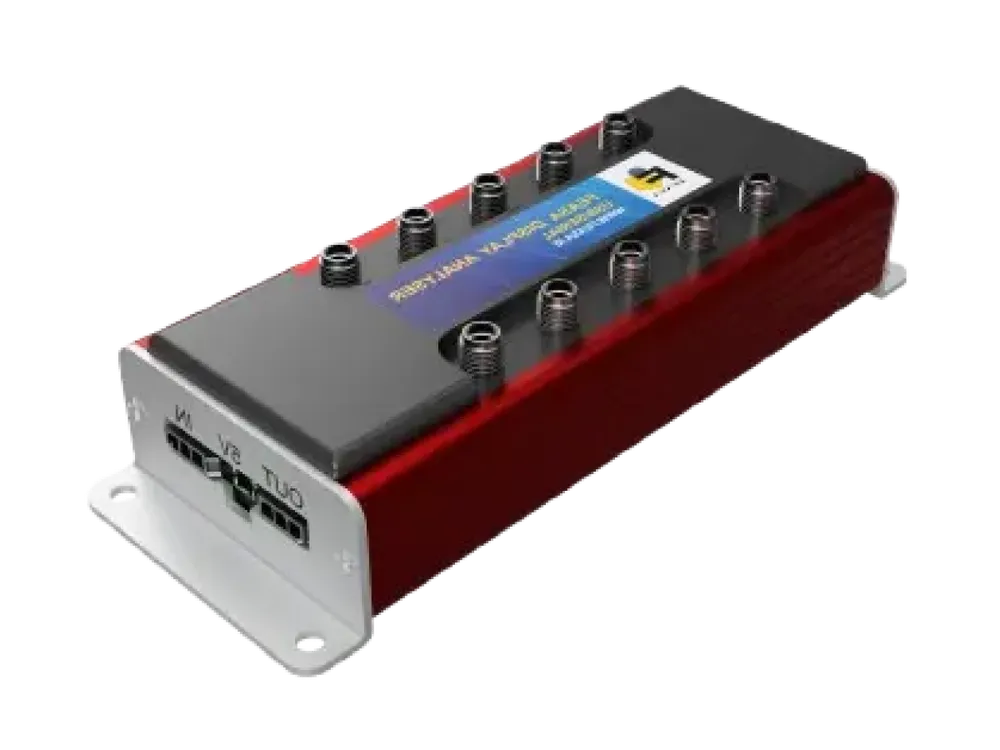

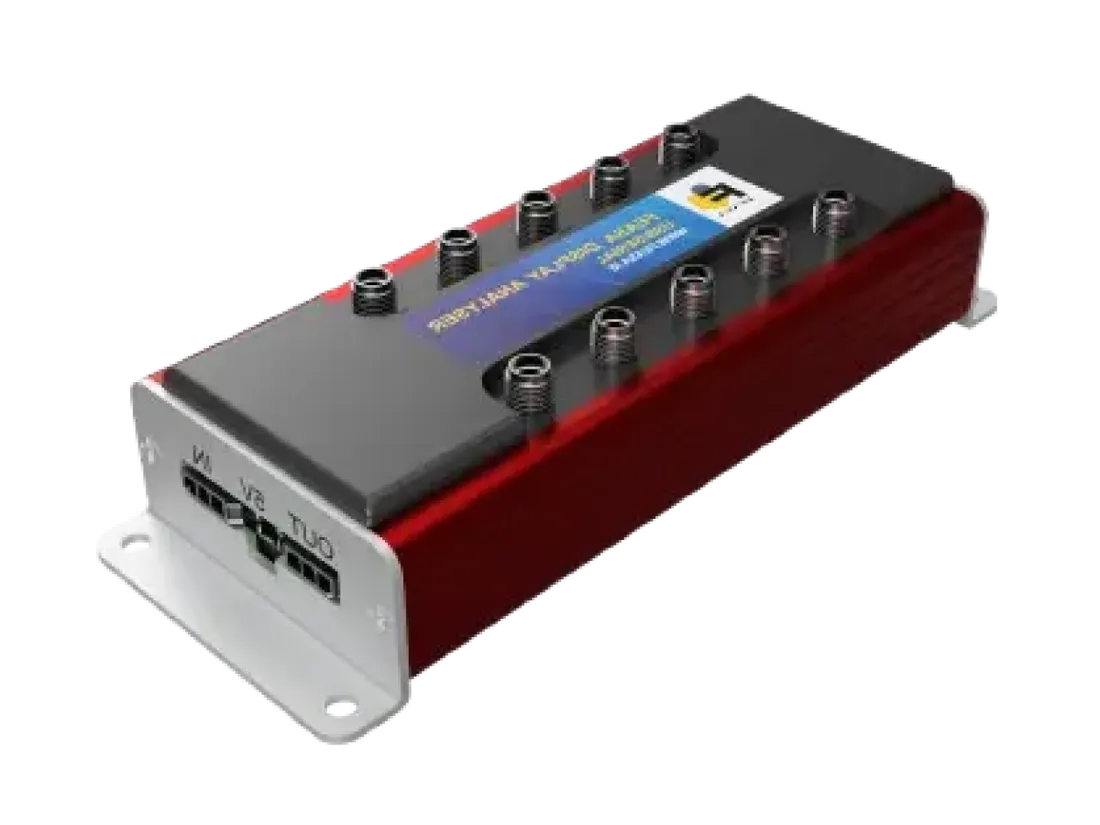

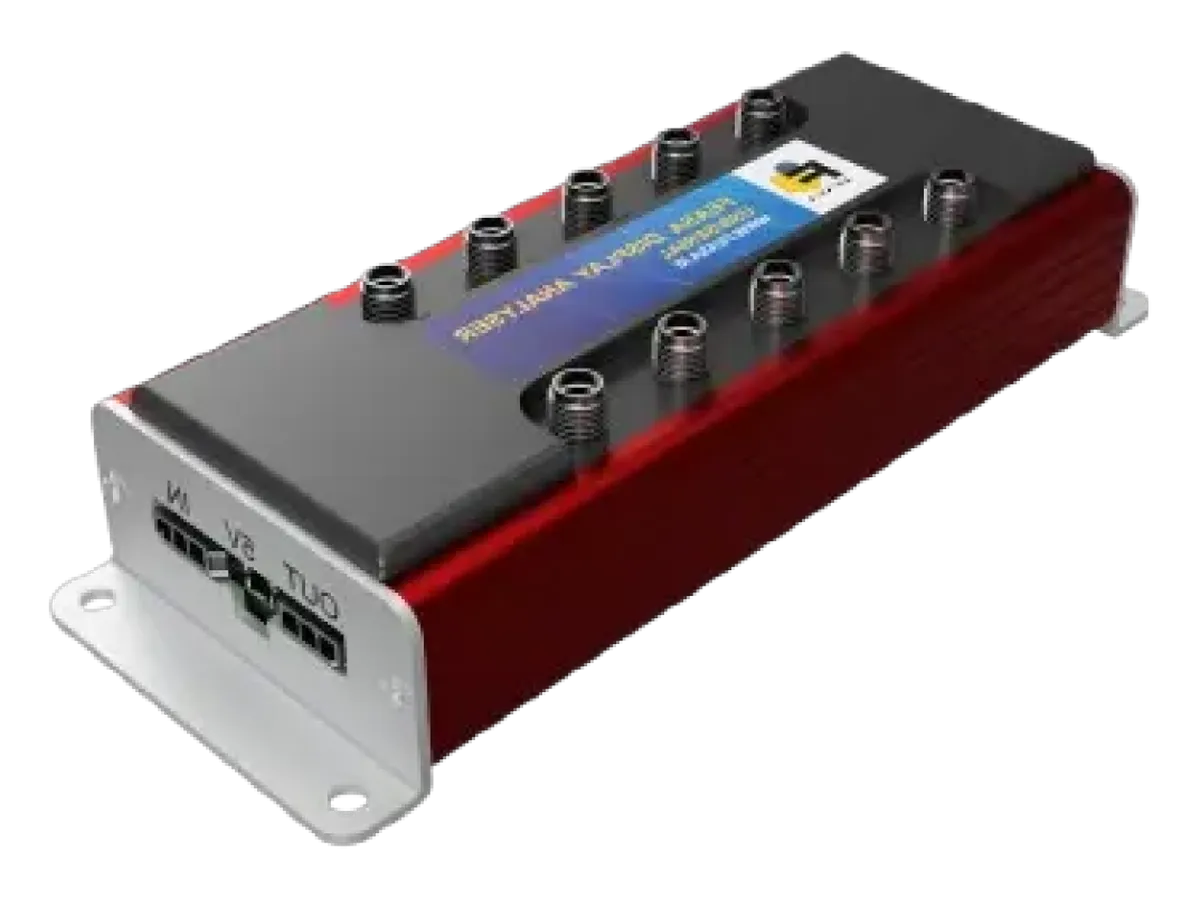

The Feasa Display Analyser is purpose-built for production testing of automotive flat panel displays. Using Luminance Heads positioned directly on the display surface, it delivers fast, traceable and repeatable measurements wherever display quality matters.
Modern vehicle displays demand consistent brightness, contrast and color. The Display Analyser verifies these characteristics directly on the finished display, ensuring every panel meets specification before assembly.
Calibrated using the Feasa LED Spectrometer or a known-good display, it delivers traceable luminance, contrast and chromaticity measurements that fit easily into automated display production lines.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Applications
Where our Display Analyser is commonly used.
Automotive
Infotainment and Navigation Displays
Automotive
Instrument Cluster Displays
Display Production
Flat Panel Quality Control
End-of-Line
Final Assembly Validation
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels per module | Up to 6 | Daisy Chain for more channels |
| Maximum luminance | 10,000 cd/m² | |
| Minimum luminance | 0.01 cd/m² | |
| Contrast ratio | Up to 200,000:1 | |
| Display homogeneity | cd/m² | Uniformity across measurement points |
| Chromaticity | x, y | CIE xy coordinates |
| Luminance accuracy (RGB backlit) | < 15% (±4% Illuminant A) | At x=0.333, y=0.333 |
| xy Chromaticity accuracy | ±0.01 (~±0.006 Illuminant A) | At x=0.333, y=0.333 |
| Chromaticity xy repeatability | ±0.0030 | Precision measurement |
| Intensity repeatability | < 1% | Excellent consistency |
| Supply | USB powered | Current drawn 60 mA |
| Interface | USB, RS232, Daisy Chain | Flexible connectivity |
| Dimensions | 124 × 57 × 75 mm | Analyser module only |
| Fiber length | 0.6 m | Patch cord per channel |
| Fiber diameter | 5.2 mm incl. cladding | Armoured patch cord |
| Min. bend radius | 25 mm | |
| Operating temperature | 0–40°C | Narrower range than other Feasa products |
| Calibration | Spectrometer + LU07, or known good display | |
| Compliance | CE, RoHS | EU standards |
| Order codes | 01-D2 · 03-D2 · 06-D2 | Confirm D2/D3 suffix with engineering |
| Required accessories | LU07 Luminance Head · FP05 Patch Cord | Must be ordered with the module |
Feasa Display Analyser Software Suite
GUI, DLL and LabVIEW — included with every analyser
- GUI — Graphical interface for display measurement setup and results review
- Command line interface — Sample CLI for scripted production test integration
- C and C++ examples — Application examples for custom integration
- DLL and LabVIEW — Support for NI platform and automated test systems
- Connectivity — USB and RS232 communication — Daisy Chain for multi-module systems
- Calibration workflow — Fixture-based Spectrometer calibration or known-good display calibration
Downloads and Resources
Product Datasheet
User Manual
Software & SDK
ZIP
Download
