Overview

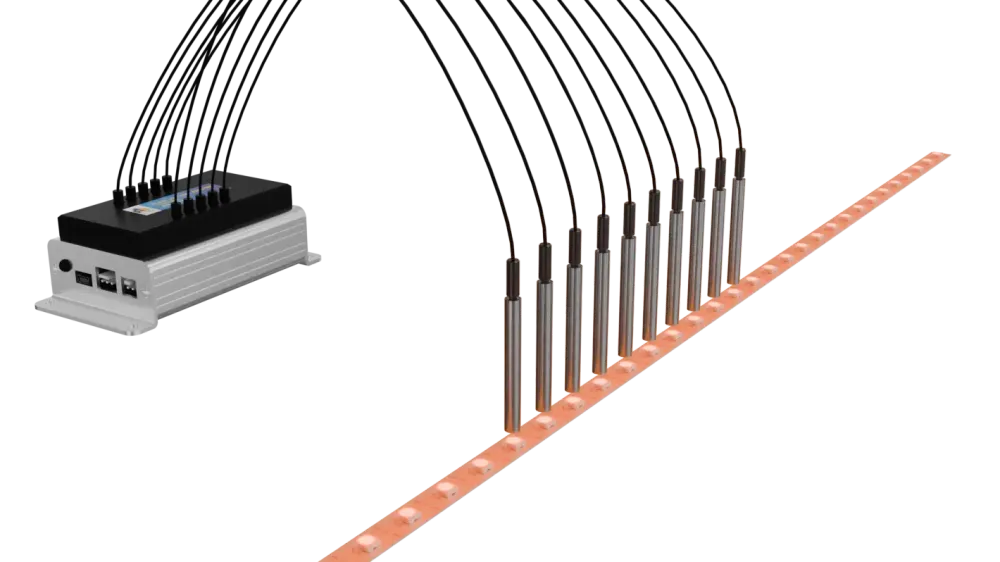

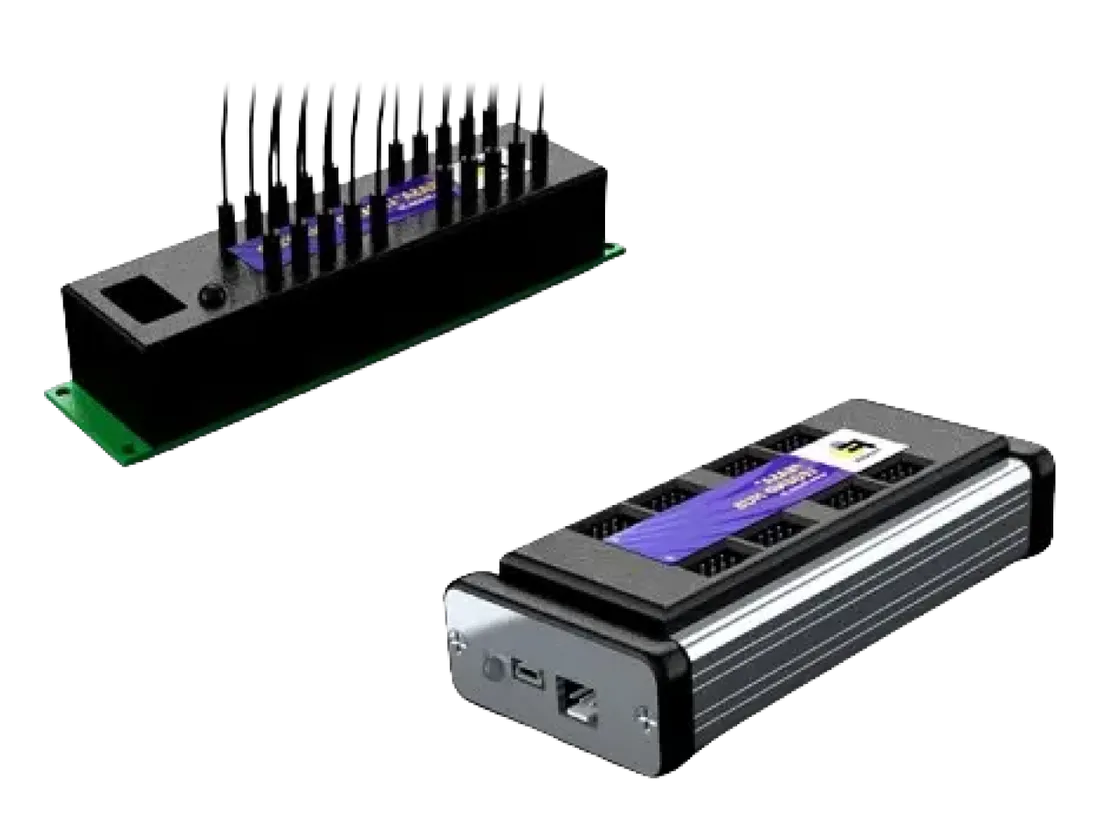

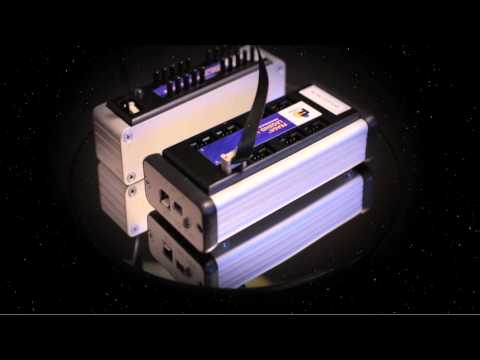

The Feasa Legend is built for production environments where the LED count is high. A central Hub controls up to eight Satellite modules, enabling a full system to test 160 LEDs in a single capture cycle.
As LED counts continue to increase, manufacturers need test systems that scale without sacrificing speed. The Legend Hub communicates with up to eight Satellite modules, enabling simultaneous measurement of up to 160 LEDs while supporting stand-alone pass/fail decisions for high-throughput end-of-line production.
Its modular architecture makes expansion straightforward as products evolve, while intelligent software supports rapid pass/fail testing across multiple product variants—capturing up to 160 LEDs in as little as 0.8 seconds.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Applications
Where our Legend Analyser is commonly used.
Automotive
Rear Lamps and Light Clusters
Automotive Interiors
Lightguides and Instrument Panels
Test Platforms

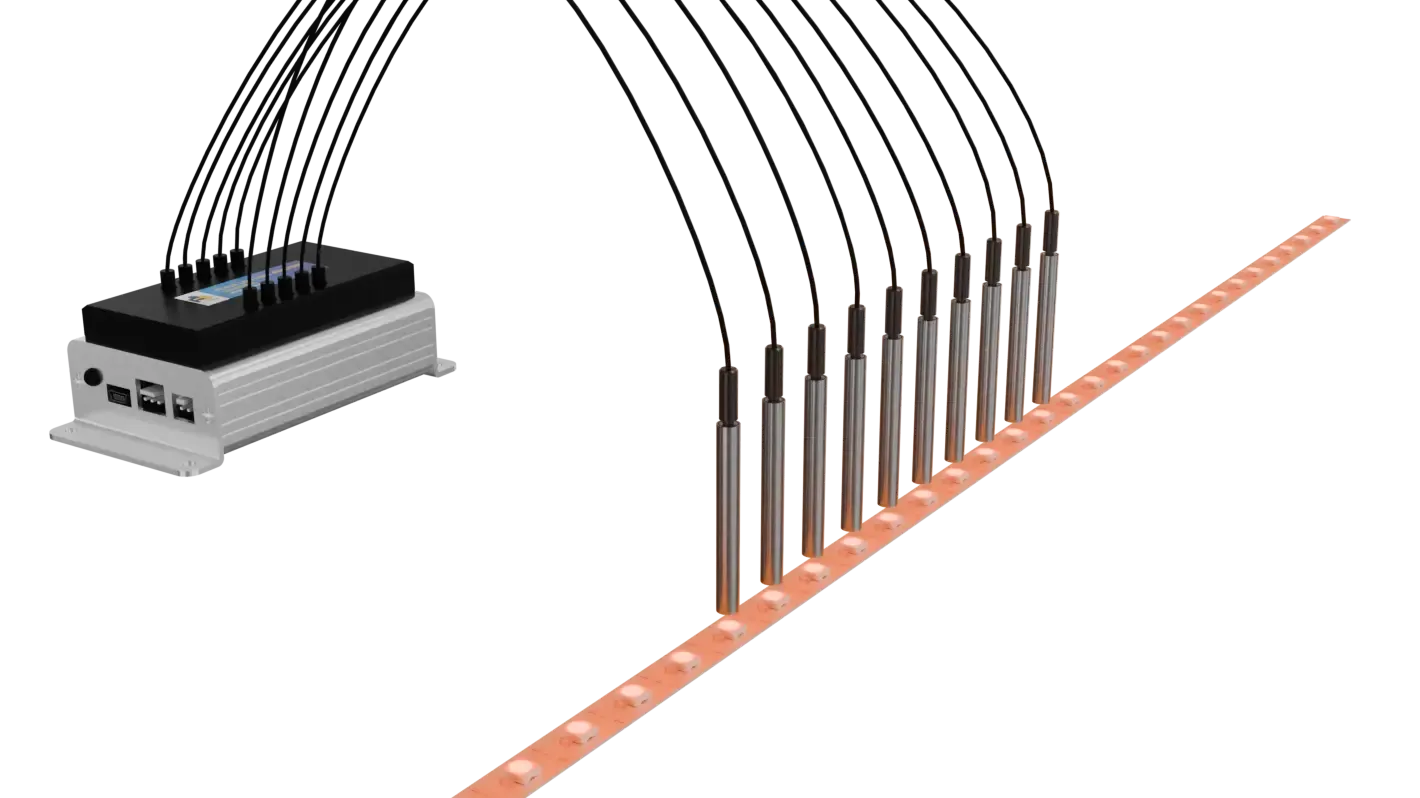

ICT and Functional Test
Aviation & Indicators
Avionics, Signals and Landing Lights
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Max channels (single Hub) | Up to 160 | 8 Satellites × 20 LEDs each |
| Max channels (multiple Hubs) | Unlimited | Hubs can be combined |
| Wavelength range | 450–650 nm | Visible spectrum |
| Dominant wavelength accuracy | ±2 nm | After adjustment |
| CCT accuracy | ±200K @ 2856K | After adjustment |
| CIE xy accuracy | ±0.01 @ x=0.33, y=0.33 | After adjustment |
| Repeatability (DW) | ±1 nm | Excellent consistency |
| Repeatability (CCT) | ±50K @ 2856K | Lab-grade stability |
| Repeatability (CIE xy) | ±0.0015 | Precision measurement |
| Test time (160 LEDs) | 0.8 seconds | All channels in parallel |
| Board version memory | 32 versions | Stored in Feasa Limits GUI |
| Supply voltage | 5.0V | Power supply included |
| Supply current | 200 mA per Satellite | Per 20-channel module |
| Hub dimensions | 130 × 55 × 30 mm | |
| Satellite dimensions | 120 × 29 × 50 mm | Up to 8 per Hub |

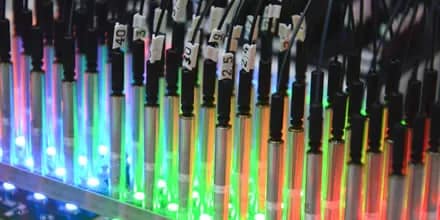

| Fiber length | 0.6 m | Per channel |
| Fiber diameter | 1.0 mm incl. cladding | Plastic optical fibre |
| Min. bend radius | 15 mm | |
| Operating temperature | 0–50°C | Industrial range |
| PC interface | USB, RS232 | Hub to PC connection |
| Hub to Satellite | 6-pin ribbon cable | Included |
| Stand-alone interface | 10-pin connector | Limit selection + pass/fail output |
| Output formats | HSI, DW, CCT with Δuv, CIE xy | Via USB / RS232 |
| Compliance | CE, RoHS | EU standards |
| Order codes | Legend 60 – 160 · >160 | By total channel count |
| Component models | HUB · 10L · 20L | Satellite channel variants |

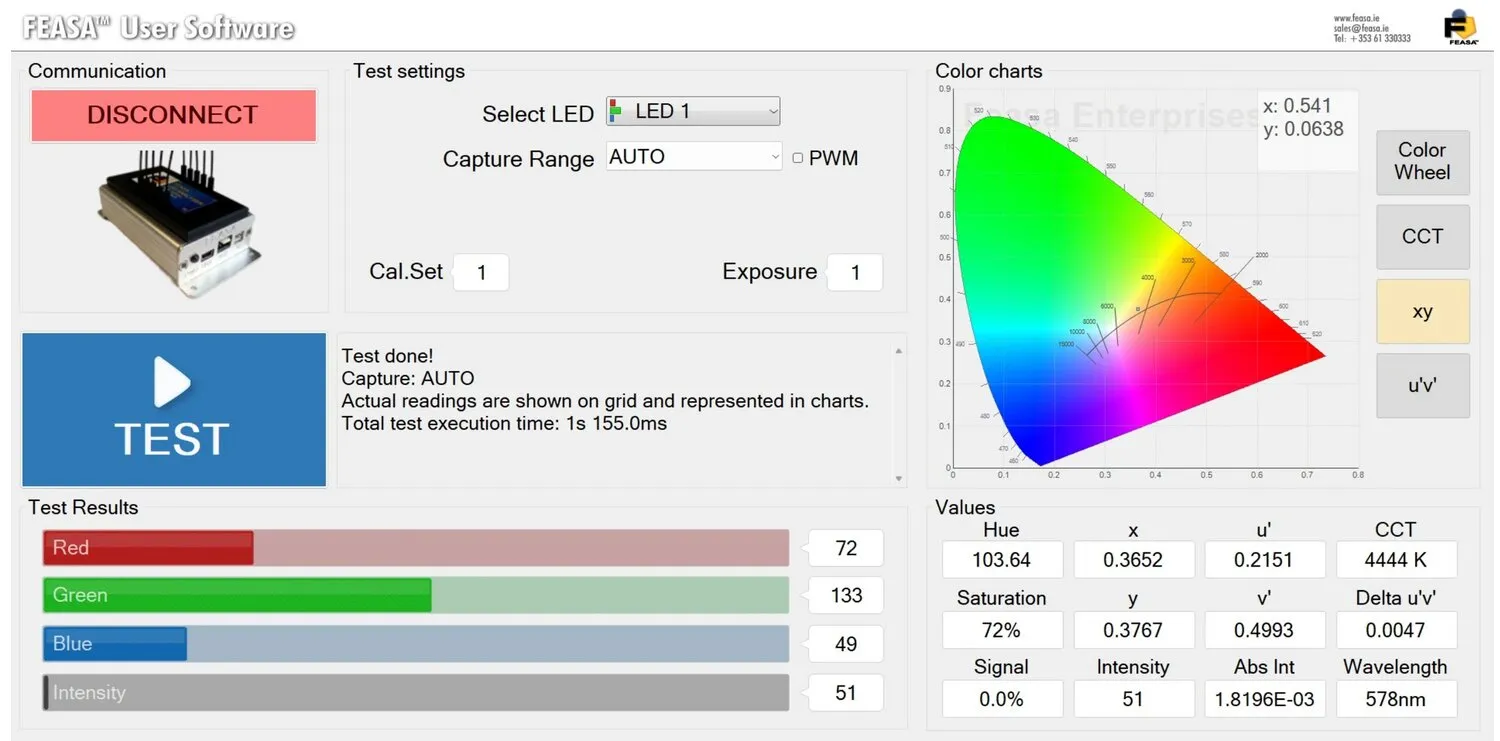

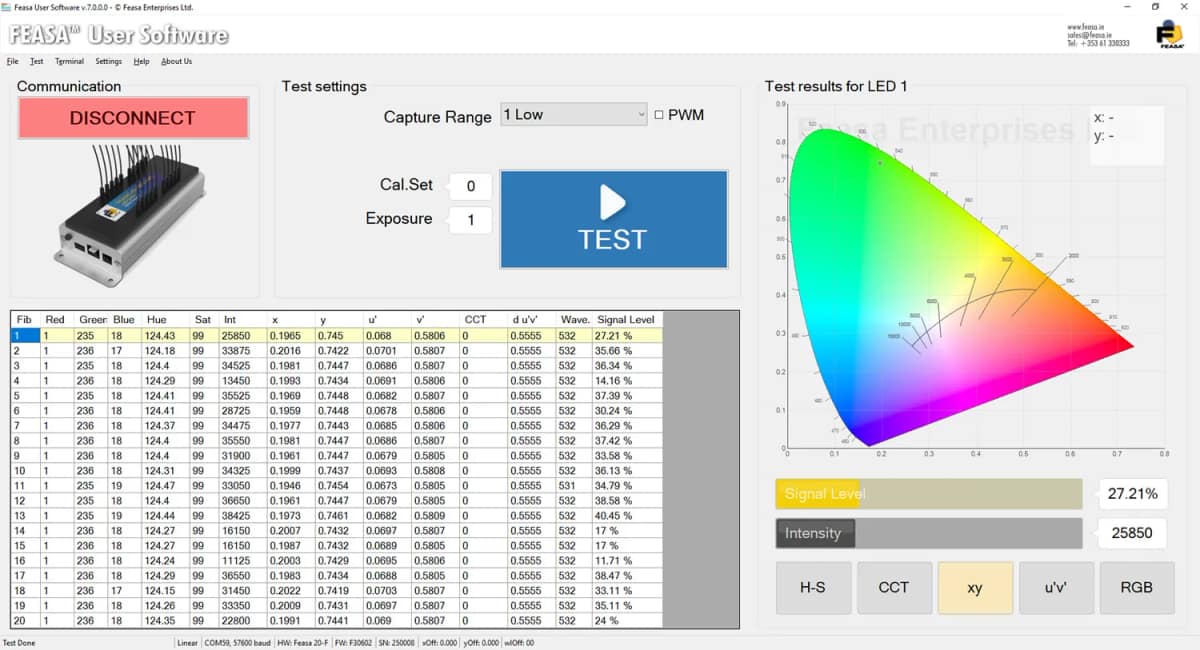

Feasa Legend Software Suite
Feasa Limits GUI and DLL — included with every system
- Feasa Limits GUI — Graphical interface for automatic learn and store of pass/fail criteria
- 32-board memory — Stores up to 32 different board versions — fast changeover between variants
- Real-time display — HSI, Dominant Wavelength, CCT and CIE xy per channel
- Data logging — Full data logging and export for SPC and traceability reporting
- DLL — Custom test integration — programming examples in LabVIEW and C++
- Stand-alone mode — Pass/fail at fixture via 10-pin connector — no PC required
