Overview

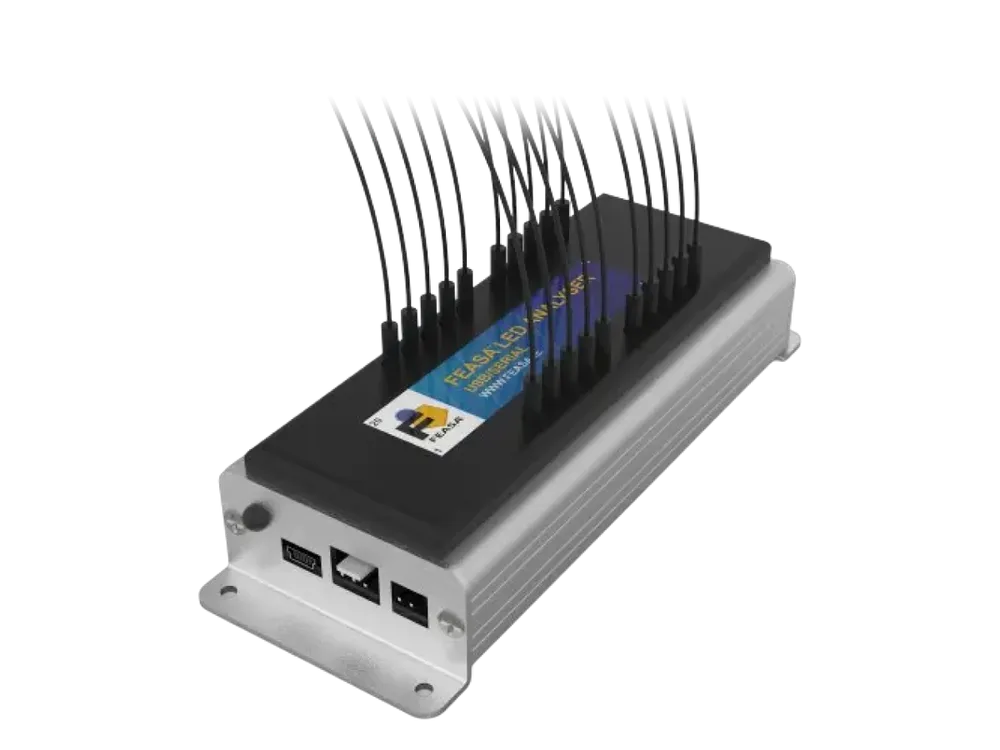

The Feasa Functional LED Analyser is a multichannel tool that tests color and intensity across multiple LEDs in a single test cycle. Fast and reliable, it's trusted by production teams worldwide across automotive, medical, consumer electronics and telecoms, helping manufacturers achieve consistent product quality.
Manufacturing lighting products at scale inevitably introduces variation through assembly processes and material tolerances. The Functional LED Analyser detects these differences quickly and preciously, providing fast, repeatable measurements that keep production lines moving and product quality under control.
Built for straightforward integration, it connects via USB or RS232, supports daisy chaining for larger systems, and includes a comprehensive software suite and SDK – making it an ideal fit for automated production environments.
Built for production. Trusted globally.
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolory
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Applications
Where our LED Analyser is commonly used.

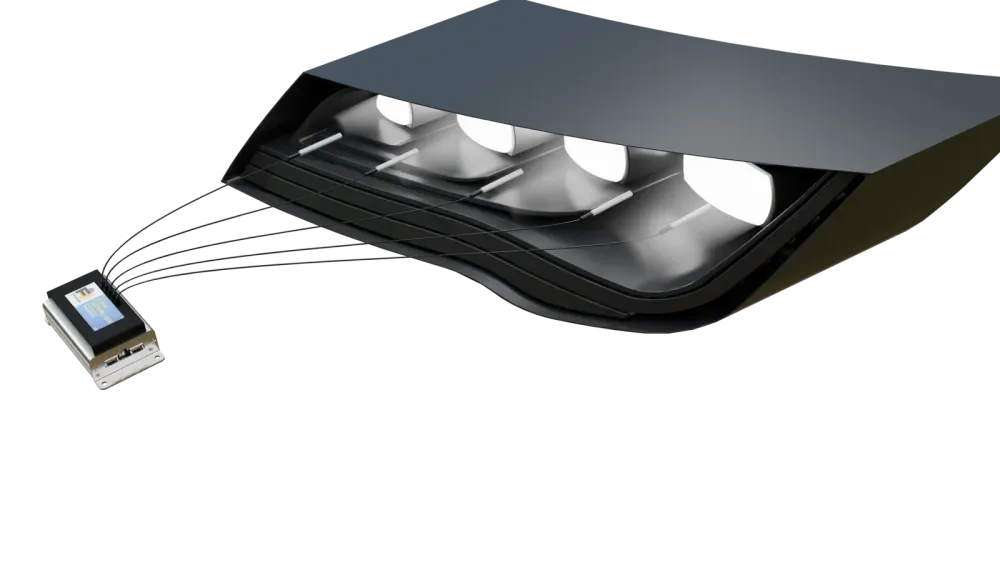

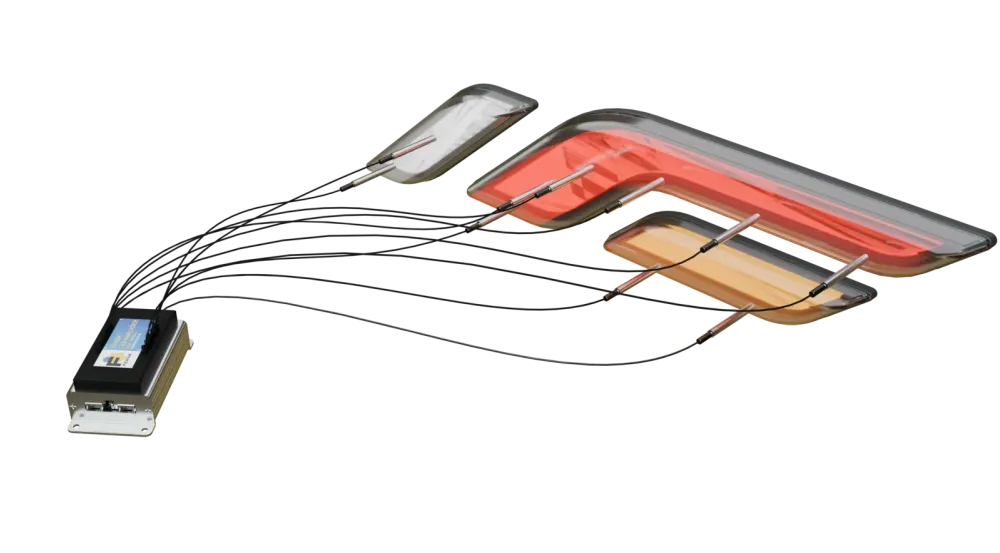

Automotive Interior
Dashboard and Indicator LEDs
Medical Devices
Status and Indicator Lighting
Consumer Electronics
Backlit Panels and Displays

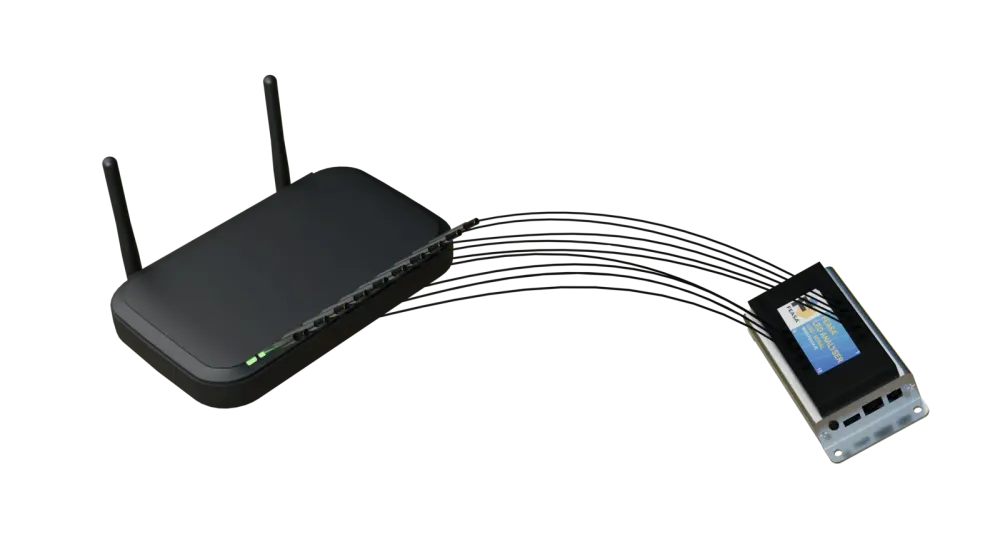

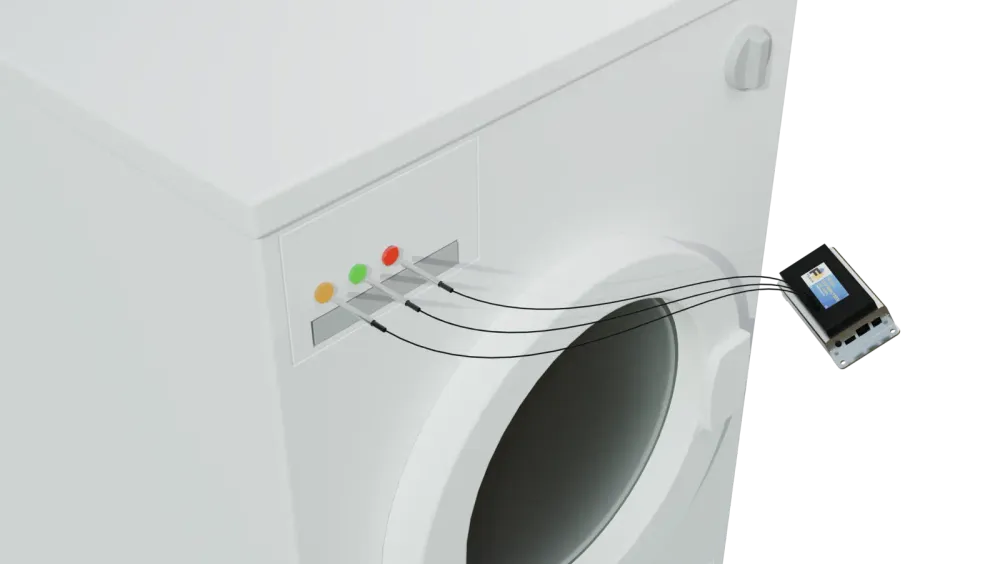

White Goods & Telecoms
Indicator and RJ45 Connector LEDs
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Channels | 3, 5, 6, 10, 20 | Simultaneous measurement |
| Wavelength range | 450–650 nm | Visible spectrum |
| Dominant wavelength accuracy | ±2 nm @ 590 nm | |
| CCT accuracy | ±200K @ 2856K | Color temperature |
| CIE xy accuracy | ±0.01 @ x=0.33, y=0.33 | With OH3 optical head |
| Resolution | 0.0001 chromaticity | |
| Repeatability (DW) | ±1 nm | Excellent consistency |
| Repeatability (CCT) | ±50K @ 2856K | Lab-grade stability |
| Repeatability (CIE xy) | ±0.0015 | Precision measurement |
| Supply voltage | 5.0V | Standard USB power |
| Supply current | 220 mA | Low power consumption |
| Dimensions (3–10 ch) | 86 × 57 × 50 mm | Compact design |
| Dimensions (20 ch) | 127 × 57 × 55 mm | Larger multichannel |
| Fiber length | 0.6 m | Per channel |
| Fiber diameter | 1.00 mm incl. cladding | Plastic optical fibre |
| Operating temperature | 0–50°C | Industrial range |
| Interface | USB, RS232, Daisy Chain | Flexible connectivity |
| Compliance | CE, RoHS | EU standards |
| Model numbers | 3F · 5F · 6F · 10F · 20F | Channel variants |
Feasa Software Suite
Included with every analyser
- Feasa Terminal — Direct command-line control and diagnostics
- Feasa User Software — Setup, calibration and pass/fail configuration
- Feasa Test Software — Production-line test execution and logging
- Feasa User Cal — User-side calibration management
- DLL/SDK — Programming examples in LabVIEW, C++, Python
