Overview
The Feasa LED Life Tester enables accelerated life testing and continuous monitoring of LEDs through extreme temperatures from −65°C to +125°C. Where conventional LED test instruments cannot operate inside environmental chambers, the Feasa LED Life Tester delivers reliable LED data throughout the entire test cycle.
Understanding how LEDs perform over thousands of hours is important for predicting long-term reliability. The LED Life Tester continuously records color and intensity as devices are exposed to extreme temperatures, providing valuable insight into performance and degradation over time.

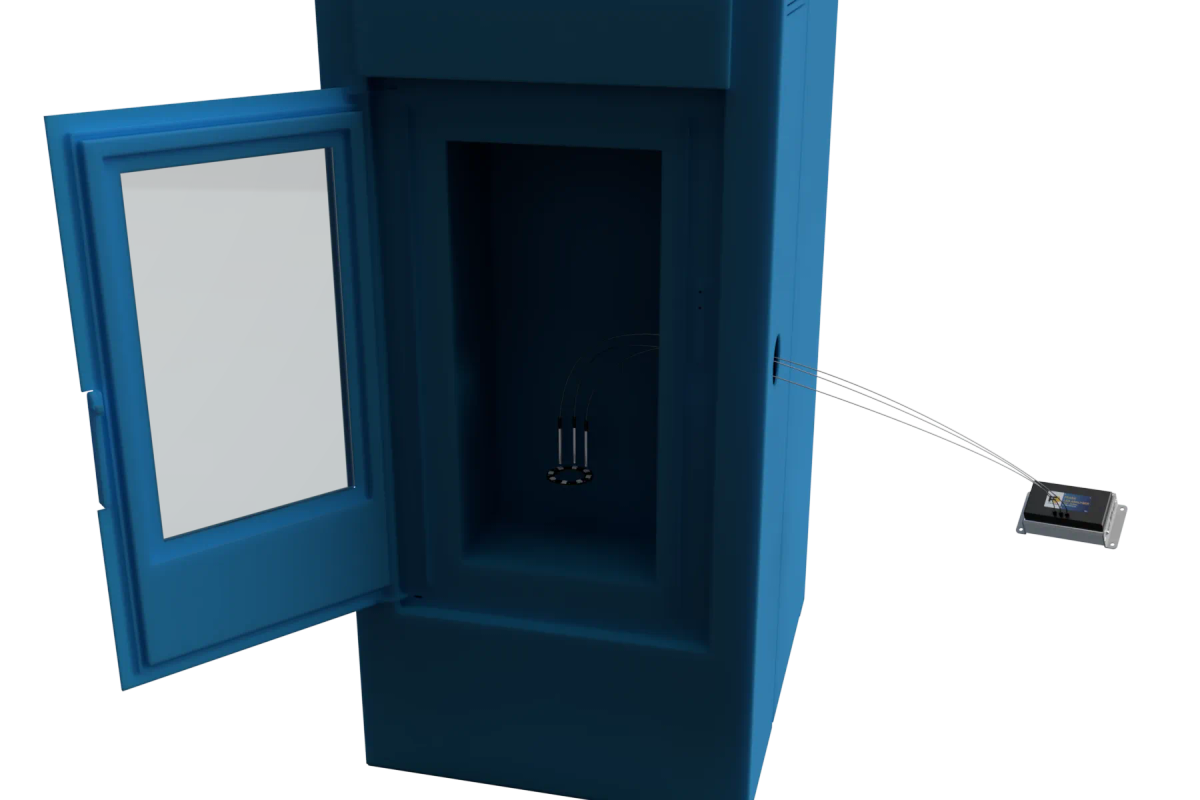

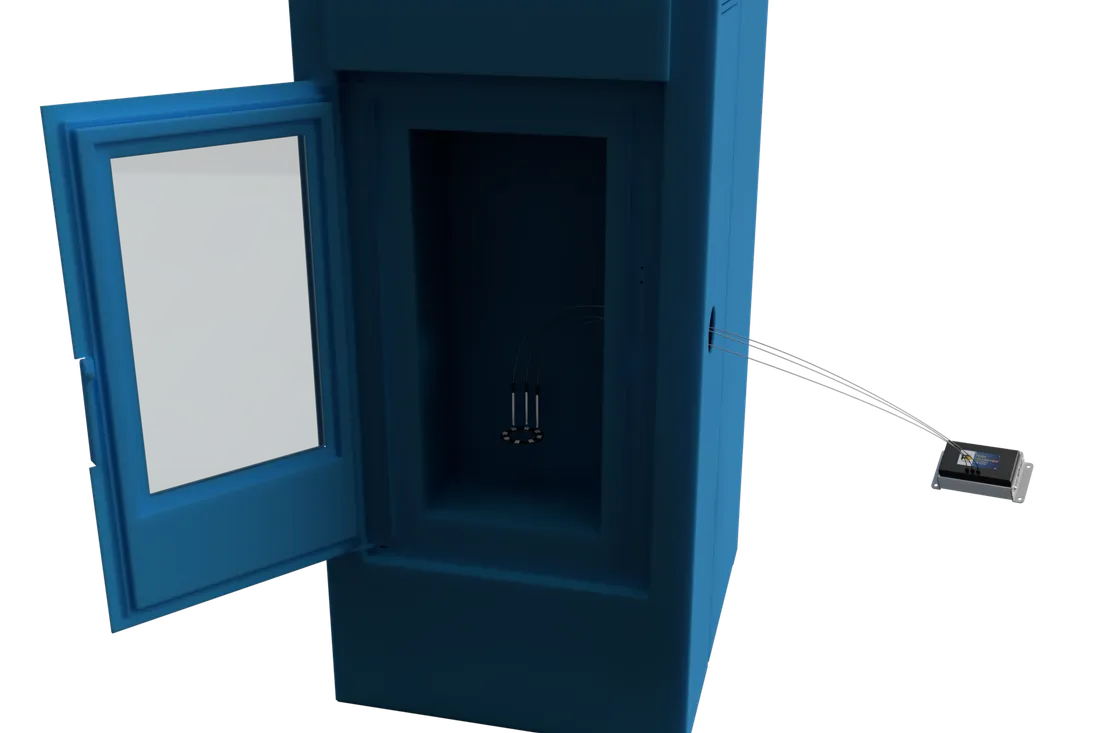

With the analyser module positioned outside the environmental chamber, it delivers fully automated long-term testing while continuously recording LED performance throughout the entire test cycle.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor
Applications
Where our LED Life Tester is commonly used.
Automotive
AEC-Q102 Qualification Testing
LED R&D
Colour Shift and Lumen Degradation
Environmental Stress
Thermal Shock, Burn-In and HTOL
Military & Aerospace
MIL-Spec LED Qualification
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Temperature range (fibre & heads) | −65°C to +125°C | Glass fibre and HT optical heads required |
| Analyser operating temperature | 0°C to +50°C | Analyser unit sits outside oven |
| Wavelength range | 450–650 nm | Visible spectrum |
| Optical fibre type | 1.1 mm glass optical fibre | Specially selected and prepared for HT use |
| Compatible optical heads | OH-7LT, OH-17LT, OH-10G-xxx | HT-rated heads only — see optical heads page |
| Interface | USB, RS232, Daisy Chain | Up to 30 units per port |
| Baud rate (USB) | Up to 460,800 baud | No external PSU required |
| Baud rate (RS232) | Up to 115,200 baud | External PSU required |
| Test interval | 1 second – multiple hours | User configurable in software |
| Data logging | To disk (CSV) | For later retrieval, graphing and reporting |
| Email alerts | On error and test completion | Configurable in Feasa Test Software |
| Channels | TBC — confirm with engineering | Based on standard analyser platform |
| Supply voltage | 5.0V | USB bus powered |
| Compliance | CE, RoHS | EU standards |
Feasa Test Software
Included with every Life Tester
- Continuous testing — LED testing at fixed time intervals — from 1 second to multiple hours
- Data logging — All data saved to disk for later retrieval, reporting and graphing
- Error alerts — Configurable email alerts on error detection
- Completion notification — Configurable email notification at end of test sequence
- Flexible connectivity — Compatible with USB and RS232 interfaces
- Multi-unit monitoring — Supports Daisy Chain for monitoring multiple analysers simultaneously
Downloads and Resources
Product Datasheet
User Manual
Optical Heads Reference
ZIP
Download
